Panel / Sheet

Afosa

Panel / Sheet Semi-Automatic

Afosa is designed as a single and/or double-sided semi-automatic UV exposure system, including LEDs, for fine line resolution on dry film and liquid soldermask.

Main characteristics
Process Inner Layers, Outer Layers & Soldermask / PSR
Exposure Area Up to 610mm x 762mm | Up to 24” x 30”
Resolution Dry Film : 15µm/15µm | 0.6mil/0.6mil (Line & Space)
Soldermask : min Dam 50µm | 2mil
Light Engine LedLight™
Mach3®LedLight™
ColliLight™ 5kW & 8kW

'Panel thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
ColliLight™ 5kW & 8kW
'Collimation ≤ 1.5°
'Dry Film Resist For all types of dry film
'Soldermask / PSR For all types of solder resist: green, white, blue, red, black…
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™ available for Afosa s
'Alignment ±15μm | 0.6mil AW/AW
±20μm | 0.8mil AW/Panel
'CCD Cameras 4 cameras (bottom side)
'Throughput Up to 2 panels/minute for I/L mode
'Batch Changeover ≤ 4 minutes - Artwork change and cleaning, job setting update
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist For all types of dry film
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™ available for Afosa s
'Alignment ±15μm | 0.6mil AW/AW
±20μm | 0.8mil AW/Panel
'CCD Cameras 4 cameras (bottom side)
'Throughput Up to 2 panels/minute for I/L mode
'Batch Changeover ≤ 4 minutes - Artwork change and cleaning, job setting update
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine 3 LED Light source
LedLight™ Mach3® - High power & triple wavelength led light source
'Collimation ≤ 1.6°
'Soldermask / PSR For all types & colors of ink: green, white, blue, red, black…
'Exposure Method Single side - Upper side exposure
'Exposure Contact Soft or hard contact vacuum - CMI™ available for Afosa s
'Alignment ±12μm | 0.5mil AW/Panel (copper pad fiducials)
'CCD Cameras 4 cameras (upper side) - All movable independently
'Throughput Up to 2 sides/minute for energy within 700mJ/cm2
'Batch Changeover ≤ 4 minutes - Artwork change and cleaning, job setting update
'Safety Safety light curtain
'Double Drawers Same height for both operating trays
'Process Inner Layers, Outer Layers & Soldermask / PSR
'Exposure Area Up to 610mm x 762mm | Up to 24” x 30”
'Resolution Dry Film: 15µm/15µm | 0.6mil/0.6mil (Line & Space)
Soldermask: Min Dam 50µm | 2mil
'Light Engine LedLight™
Mach3®LedLight™
ColliLight™ 5kW & 8kW

More infos

Acura

Panel / Sheet Fully-Automatic

Acura is an automatic exposure unit operating in double side mode with different light sources, including LEDs, for fine line resolution on dry film and liquid soldermask.

Main characteristics
Process Inner Layers, Outer Layers & Soldermask / PSR
Exposure Area Up to 610mm x 762mm | Up to 24” x 30”
Resolution Dry Film : 15µm/15µm | 0.6mil/0.6mil (L&S)
Soldermask : min Dam 60µm | 2.4mil
Light Engine LedLight™
ColliLight™ 5kW & 8kW
OptiLight™
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist & Liquid ink For all types of dry film & liquid ink
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
ColliLight™ 5kW & 8kW
'Collimation ≤ 1.5°
'Dry Film Resist & Liquid ink For all types of dry film & liquid ink
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
OptiLight™
'Collimation <10°
'Liquid ink For all types of liquid ink
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist & Liquid ink For all types of dry film & liquid ink
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
ColliLight™ 5kW
'Collimation ≤ 1.5°
'Dry Film Resist For all types of dry film
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist For all types of dry film
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
ColliLight™ 8kW
'Collimation ≤ 1.5°
'Dry Film Resist For all types of dry film
'Soldermask / PSR For all types of solder resist: green, white, blue, red, black…
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±10μm | 0.4mil AW/Panel (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 8 cameras
'Throughput Up to 3 panels/minute depending on SM ink (mJ)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
OptiLight™
'Collimation <10°
'Dry Film Resist For all types of dry film
'Soldermask / PSR For all types of solder resist: green, white, blue, red, black…
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±10μm | 0.4mil AW/Panel (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 8 cameras
'Throughput Up to 3 panels/minute depending on SM ink (mJ)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Process Inner Layers & Outer Layers
'Exposure Area Up to 610mm x 762mm | Up to 24” x 30”
'Resolution Dry film: 15µm/15µm | 0.6mil/0.6mil (Line & Space)
'Light Engine LedLight™
ColliLight™ 5kW & 8kW

More infos

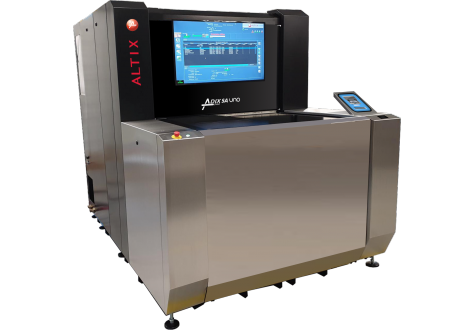

Adix SA

Panel / Sheet Semi-Automatic

Adix SA is an UV LED DMD Direct Imaging solution for all Direct Imaging applications based on its new ALDS-Power4+™ technology with 4 LEDs per photo head.
The solution is dedicated to high mix low and medium volume production.

Main characteristics
Process Inner Layers, Outer Layers & Soldermask / PSR
Exposure Area From 228 x 254mm up to 610 x 762mm | From 9’’x10’’ up to 24”x30”
Resolution Dry Film : 20µm/20µm | 0.8mil/0.8mil (Line & Space)
Soldermask : min Dam 25µm | 1mil
Light Engine ALDS-Power4+™ Data preprocessing in hidden time
High UV Power with 4 LEDs per Photo Head
'Panel Thickness 0.04mm to 6mm | 0.0016” to 0.236”
'Light Engine LED Light source
ALDS-Power4+™
'Edge Roughness ±1,5µm | ±0.05mil
'Depth of Focus 200µm | 8mils
'Autofocus ±8mm | ±315mils
'Exposure Spectrum 4 LEDs wavelengths per Photo Head: 365/380/395/405nm
'Alignment ±8μm | 0.3mil (Image to Panel Registration)
±12μm | 0.5mil (Side to Side Registration)
'CCD Cameras 2 Cameras
- for Outer Layers (Alignment on 4 Holes)
- for Soldermask Registration (Alignment on 4 Copper Targets)
3 Cameras
- for Inner Layers (Alignment on 3 Fiducials)
'Throughput 14s with 30mJ/cm2 resist for 457 x 610mm (18’’x 24’’) image size and with 6 Heads
'Panel Thickness 0.04mm to 6mm | 0.0016” to 0.236”
'Light Engine LED Light source
ALDS-Power4™
'Edge Roughness ±1,5µm | ±0.05mil
'Depth of Focus ±100µm | ±4mils
'Autofocus ±8mm | ±315mils
'Exposure Spectrum 4 LEDs wavelengths per Photo Head: 365/380/395/405nm
'Imaging Resist Materials Conventional & DI/LDI Specific Dry Film, Ink & Solder Resists
'Exposure Method Real Time Scaling & Partitioning with all kinds of fiducials
'Alignment ±8μm | 0.3mil (Image to Panel Registration)
±12μm | 0.5mil (Side to Side Registration)
'CCD Cameras 2 Cameras
- for Outer Layers (Alignment on 4 Holes)
- for Soldermask Registration (Alignment on 4 Copper Targets)
3 Cameras
- for Inner Layers (Alignment on 3 Fiducials)
'Throughput 14s with 30mJ/cm2 resist for 457 x 610mm (18’’x 24’’) image size and with 6 Heads
'Construction Stainless steel
'Software Altix Suite with 22” touch screen
'Data Input Extended Gerber, ODB++ (others upon request)
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Process Inner Layers, Outer Layers & Soldermask / PSR
'Exposure Area From 228 x 254mm up to 610 x 762mm | From 9’’x10’’ up to 24”x30”
'Resolution Dry Film: 10µm/10µm | 0.4mil/0.4mil (Line & Space)
Soldermask: Min Dam 25µm | 1mil
'Light Engine ALDS-Power4+™ Data preprocessing in hidden time
High UV Power with 4 LEDs per Photo Head

More infos

Adix PT / F

Panel / Sheet Fully-Automatic

Adix SA can be incorporated with "Pass-Through Automation" allowing full automatic operation.

Adix PT/F is an UV LED DMD Direct Imaging solution based on its new ALDS-Power4+™Technology including 4 different LEDs per Photo-Head (with 4 different wavelengths). The solution is dedicated for PCB, FPC and Photo Chemical Milling applications, for high mix low and medium volume production, in inner layer, outer layer, and solder mask processes. It was designed to reach the best-cost performance.

Main characteristics
Integrated Automation for Fully-Automatic Direct Imaging Process
Up to 610 x 610mm / Cycle time of 10s per side thanks to a quick panel change
Inline or Stand Alone solution / Pass Through side by side or Flip double side Production
Multibatch / High mix & medium volume
Dedicated for all resists : Dry Film & Soldermask / PSR
'Panel Thickness 0,04 to 6mm
'Light Engine ALDS-Power4+™
'Edge Roughness ± 1,5µm
'Depth of Focus ± 100µm
'Autofocus Dynamic AF sensor per Head, stroke of ± 2 mm
'Alignment ± 12µm Side to Side Alignment
± 8µm Image to Panel (holes or pads)
'CCD Cameras Side to Side Alignment : 3 cameras
Image to Panel Alignment : 2 cameras
Image calibration : 1 camera
' Adix SA can be incorporated with « Pass-Through Automation » allowing full automatic operation
' Up to 610 x 610mm / Cycle time of 10s per side thanks to a quick panel change
' Inline or Stand Alone solution / Pass-Through side by side or Flip double side Production
' Multibatch / High mix & medium volume
' Dedicated for all resists: Dry Film & Soldermask

More infos

Adix CS / F

Panel / Sheet Fully-Automatic

The system is designed to automatically load and unload panels into an ADIX Direct Imaging system. The machine has one loading/unloading port for angular L-Rack cassette where the panels are loaded.

Main characteristics
Up to 610 x 610mm / Cycle time of 10s per side thanks to a quick panel change
Modus AAA... to BBB... with intermediate buffer
Multibatch
Dedicated for all resists : Dry Film & Soldermask
'Panel Thickness 0.05mm ~ 3.2mm (Optional 5mm)
'Throughput Cycle time 25 sec per side
'Sensors Integrated, intelligent double board detection
Integrated interleave (slip sheet) detection
'Double side Flipping station with handshake
' Adix SA can be incorporated with " Compact Automation " allowing full automatic operation
' Up to 610 x 610mm / Cycle time of 25s per side / Optimized footprint
' Modus AAA... to BBB... with intermediate buffer
' Multibatch
' Dedicated for all resists: Dry Film & Soldermask

More infos

Adix with Customized Solutions

Panel / Sheet Fully-Automatic

Adix units can be incorporated with various Customized "Smart Automation" solutions in order to match with all specific Customer's needs.

Main characteristics
Adix Units can be incorporated with various Customized "Smart Automation" solutions in order to allow full automatic operation
Customized Solutions fit all specific Customer needs and are adequate for small lot sizes, high mix and high volume production
' Adix Units can be incorporated with various Customized « Smart Automation » solutions in order to allow full automatic operation
' Customized solutions fit all specific Customer needs and are adequate for small lot sizes, high mix and high volume production

More infos

Altix worldwide !

Discover all our offices
