Afosa
AfosaA是一款单面和双面兼用的半自动UV曝光机，包含LED光源，适用于内层，外层和防焊制程的高品质解析。
主要特点
| 制程应用 | 内层，外层/防焊/ PSR |
| 曝光面积 | 可达 610mm x762mm | 24” x 30” |
| 解析度 | 先进的高功率和三波长光源专用于防焊/ PSR 最佳性价比 |
| 光源 | LedLight™ Mach3®LedLight™ 平行光5KW,8KW |
| '板厚 | 0.05mm to 6mm | 0.002” to 0.236” |
| '光源 | 高压汞灯 5KW,8KW的平行光 |
| '平行半角 | ≤ 1.5° |
| '干膜光阻 | 适用于所有类型的干膜 |
| '防焊/PSR | 适用于所有类型的油墨：绿色，白色，蓝色，红色，黑色… |
| '曝光模式 | 双面 |
| '接触式曝光 | 软真空或硬真空接触（兼容CMI™） |
| '对位精度 | ±15μm | 0.6mil 片对片 ±20μm | 0.8mil 片对板 |
| 'CCD摄像头 | 4个摄像头（框架底部) |
| '产能 | 内层模式高达每分钟2 片 |
| '料号切换 | 4分钟内完成底片切换，清洁和参数设置 |
| '板厚 | 0.05mm to 6mm | 0.002” to 0.236” |
| '光源 | LED 光源 LedLight™ |
| '平行半角 | ≤ 1.6° |
| '干膜光阻 | 适用于各种类型的干膜 |
| '曝光模式 | 双面 |
| '接触式曝光 | 软真空或硬真空接触（兼容CMI™） |
| '对位精度 | ±15μm | 0.6mil AW/AW ±20μm | 0.8mil AW/板 |
| 'CCD摄像头 | 4个摄像头（框架底部) |
| '产能 | 内层模式高达每分钟2片 |
| '料号更换 | 4分钟内完成底片切换，清洁和参数设置 |
| '板厚 | 0.05mm to 6mm | 0.002” to 0.236” |
| '光源 | 3个LED光源 LedLight™ Mach3® - 高功率和三波长LED光源 |
| '平行半角 | ≤ 1.6° |
| '防焊/PSR | 适用于所有类型和颜色的油墨：绿色，白色，蓝色，红色，黑色… |
| '曝光模式 | 单面-上底片曝光 |
| '接触式曝光 | 软真空或硬真空接触（兼容CMI™） |
| '对位精度 | ±12μm | 0.5mil AW/片（铜垫基准点） ±20μm | 0.8mil AW/Panel |
| 'CCD摄像头 | 4个摄像头（上底片），所有都可以独立移动 |
| '产能 | 高达每分钟2 片，曝光能量：700mJ/cm2 |
| '料号更换 | 4分钟内完成底片切换，清洁和参数设置 |
| '安全 | 安全光栅 |
| '双框 | 双框设计相同 |
| '制程应用 | 内层，外层，防焊/ PSR |
| '曝光面积 | 最大 610mm x 762mm | 24” x 30” |
| '解析度 | 15µm/15µm |0.6mil/0.6mil (线宽线距) 阻焊桥最小可达 50µm | 2mi |
| '光源 | LedLight™（LED光源） Mach3®LedLight™（适用于防焊的3波长的LED光源 5KW,8KW的平行光 |

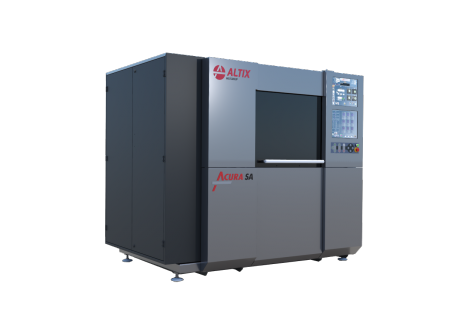

Acura
Acura是一款单面和双面兼用的全自动UV曝光机，配有不同的光源，包含LED光源，适用于内层，外层和防焊制程的高品质解析
主要特点
| 制程应用 | 内层，外层/防焊/ PSR |
| 曝光面积 | 可达 610mm x762mm|24” x 30” |
| 解析度 | 15µm/15µm|0.6mil/0.6mil (线宽/线距) 阻焊桥最小可达60µm|2.4mi |
| 光源 | LedLight™ 平行光5KW,8KW 准直光 |
| 'Panel Thickness | 0.05mm to 6mm | 0.002” to 0.236” |
| 'Light Engine | LED Light source LedLight™ |
| 'Collimation | ≤ 1.6° |
| 'Dry Film Resist & Liquid ink | For all types of dry film & liquid ink |
| 'Exposure Method | Double side |
| 'Exposure Contact | Soft or hard contact vacuum - CMI™ |
| 'Alignment | ±5μm | 0.2mil AW/AW (after vacuum) ±3μm | 0.12mil Repeatability (after vacuum) |
| 'CCD Cameras | 4 cameras |
| 'Throughput | Up to 4.5 panels/minute (dry film) |
| 'Batch Changeover | < 2 minutes - Artwork change and cleaning, job setting update |
| 'Construction | Stainless steel |
| 'Software | Altix Suite with 17” touch screen |
| 'Air Cleanliness | Hepa filter class 100 |
| 'Languages | English, Simplified & Traditional Chinese, Korean, German, French… |
| 'Panel Thickness | 0.05mm to 6mm | 0.002” to 0.236” |
| 'Light Engine | High pressure mercury lamp ColliLight™ 5kW & 8kW |
| 'Collimation | ≤ 1.5° |
| 'Dry Film Resist & Liquid ink | For all types of dry film & liquid ink |
| 'Exposure Method | Double side |
| 'Exposure Contact | Soft or hard contact vacuum - CMI™ |
| 'Alignment | ±5μm | 0.2mil AW/AW (after vacuum) ±3μm | 0.12mil Repeatability (after vacuum) |
| 'CCD Cameras | 4 cameras |
| 'Throughput | Up to 4.5 panels/minute (dry film) |
| 'Batch Changeover | < 2 minutes - Artwork change and cleaning, job setting update |
| 'Construction | Stainless steel |
| 'Software | Altix Suite with 17” touch screen |
| 'Air Cleanliness | Hepa filter class 100 |
| 'Languages | English, Simplified & Traditional Chinese, Korean, German, French… |
| 'Panel Thickness | 0.05mm to 6mm | 0.002” to 0.236” |
| 'Light Engine | High pressure mercury lamp OptiLight™ |
| 'Collimation | <10° |
| 'Liquid ink | For all types of liquid ink |
| 'Exposure Method | Double side |
| 'Exposure Contact | Soft or hard contact vacuum - CMI™ |
| 'Alignment | ±5μm | 0.2mil AW/AW (after vacuum) ±3μm | 0.12mil Repeatability (after vacuum) |
| 'CCD Cameras | 4 cameras |
| 'Throughput | Up to 4.5 panels/minute (dry film) |
| 'Batch Changeover | < 2 minutes - Artwork change and cleaning, job setting update |
| 'Construction | Stainless steel |
| 'Software | Altix Suite with 17” touch screen |
| 'Air Cleanliness | Hepa filter class 100 |
| 'Languages | English, Simplified & Traditional Chinese, Korean, German, French… |
| 'Panel Thickness | 0.05mm to 6mm | 0.002” to 0.236” |
| 'Light Engine | LED Light source LedLight™ |
| 'Collimation | ≤ 1.6° |
| 'Dry Film Resist & Liquid ink | For all types of dry film & liquid ink |
| 'Exposure Method | Double side |
| 'Exposure Contact | Soft or hard contact vacuum - CMI™ |
| 'Alignment | ±5μm | 0.2mil AW/AW (after vacuum) ±3μm | 0.12mil Repeatability (after vacuum) |
| 'CCD Cameras | 4 cameras |
| 'Throughput | Up to 4.5 panels/minute (dry film) |
| 'Batch Changeover | < 2 minutes - Artwork change and cleaning, job setting update |
| 'Construction | Stainless steel |
| 'Software | Altix Suite with 17” touch screen |
| 'Air Cleanliness | Hepa filter class 100 |
| 'Languages | English, Simplified & Traditional Chinese, Korean, German, French… |
| 'Panel Thickness | 0.05mm to 6mm | 0.002” to 0.236” |
| 'Light Engine | High pressure mercury lamp ColliLight™ 5kW |
| 'Collimation | ≤ 1.5° |
| 'Dry Film Resist | For all types of dry film |
| 'Exposure Method | Double side |
| 'Exposure Contact | Soft or hard contact vacuum - CMI™ |
| 'Alignment | ±5μm | 0.2mil AW/AW (after vacuum) ±3μm | 0.12mil Repeatability (after vacuum) |
| 'CCD Cameras | 4 cameras |
| 'Throughput | Up to 4.5 panels/minute (dry film) |
| 'Batch Changeover | < 2 minutes - Artwork change and cleaning, job setting update |
| 'Construction | Stainless steel |
| 'Software | Altix Suite with 17” touch screen |
| 'Air Cleanliness | Hepa filter class 100 |
| 'Languages | English, Simplified & Traditional Chinese, Korean, German, French… |
| 'Panel Thickness | 0.05mm to 6mm | 0.002” to 0.236” |
| 'Light Engine | LED Light source LedLight™ |
| 'Collimation | ≤ 1.6° |
| 'Dry Film Resist | For all types of dry film |
| 'Exposure Method | Double side |
| 'Exposure Contact | Soft or hard contact vacuum - CMI™ |
| 'Alignment | ±5μm | 0.2mil AW/AW (after vacuum) ±3μm | 0.12mil Repeatability (after vacuum) |
| 'CCD Cameras | 4 cameras |
| 'Throughput | Up to 4.5 panels/minute (dry film) |
| 'Batch Changeover | < 2 minutes - Artwork change and cleaning, job setting update |
| 'Construction | Stainless steel |
| 'Software | Altix Suite with 17” touch screen |
| 'Air Cleanliness | Hepa filter class 100 |
| 'Languages | English, Simplified & Traditional Chinese, Korean, German, French… |
| 'Panel Thickness | 0.05mm to 6mm | 0.002” to 0.236” |
| 'Light Engine | High pressure mercury lamp ColliLight™ 8kW |
| 'Collimation | ≤ 1.5° |
| 'Dry Film Resist | For all types of dry film |
| 'Soldermask / PSR | For all types of solder resist: green, white, blue, red, black… |
| 'Exposure Method | Double side |
| 'Exposure Contact | Soft or hard contact vacuum - CMI™ |
| 'Alignment | ±5μm | 0.2mil AW/AW (after vacuum) ±10μm | 0.4mil AW/Panel (after vacuum) ±3μm | 0.12mil Repeatability (after vacuum) |
| 'CCD Cameras | 8 cameras |
| 'Throughput | Up to 3 panels/minute depending on SM ink (mJ) |
| 'Batch Changeover | < 2 minutes - Artwork change and cleaning, job setting update |
| 'Construction | Stainless steel |
| 'Software | Altix Suite with 17” touch screen |
| 'Air Cleanliness | Hepa filter class 100 |
| 'Languages | English, Simplified & Traditional Chinese, Korean, German, French… |
| 'Panel Thickness | 0.05mm to 6mm | 0.002” to 0.236” |
| 'Light Engine | High pressure mercury lamp OptiLight™ |
| 'Collimation | <10° |
| 'Dry Film Resist | For all types of dry film |
| 'Soldermask / PSR | For all types of solder resist: green, white, blue, red, black… |
| 'Exposure Method | Double side |
| 'Exposure Contact | Soft or hard contact vacuum - CMI™ |
| 'Alignment | ±5μm | 0.2mil AW/AW (after vacuum) ±10μm | 0.4mil AW/Panel (after vacuum) ±3μm | 0.12mil Repeatability (after vacuum) |
| 'CCD Cameras | 8 cameras |
| 'Throughput | Up to 3 panels/minute depending on SM ink (mJ) |
| 'Batch Changeover | < 2 minutes - Artwork change and cleaning, job setting update |
| 'Construction | Stainless steel |
| 'Software | Altix Suite with 17” touch screen |
| 'Air Cleanliness | Hepa filter class 100 |
| 'Languages | English, Simplified & Traditional Chinese, Korean, German, French… |
| 'Process | Inner Layers & Outer Layers |
| 'Exposure Area | Up to 610mm x 762mm | Up to 24” x 30” |
| 'Resolution | Dry film: 15µm/15µm | 0.6mil/0.6mil (Line & Space) |
| 'Light Engine | LedLight™ ColliLight™ 5kW & 8kW |

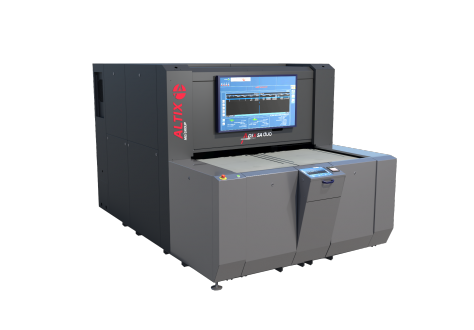

Adix SA
Adix SA是一款UV LED DMD直接成像设备，适用于各种需要直接成像的应用。基于其全新的ALDS-Power4+™技术，每个成像头配有4波长的UV LED 光源。
该设备适用于中/高批量，或少量多样的生产需求
主要特点
| 制程应用 | 内层，外层，防焊/ PSR |
| 曝光面积 | 从228 x 254mm到610 x 762mm |从 9” x 10”到24” x 30” |
| 解析度 | 干膜 : 20µm/20µm |0.8mil/0.8mil (线宽线距) 阻焊桥最小可达25µm | 1mi |
| 光源 | ALDS-Power4+™ 极短的数据预处理时间 高功率 UV –LED,每个成像头配置4个LED |
| '板厚 | 0.04mm 到 6mm | 0.0016” 到 0.236” |
| '光源 | LED光源 ALDS-Power4+™ |
| '边缘粗糙度 | ±1,5µm | ±0.05mil |
| '景深 | 200µm | 8mils |
| '自动对焦 | ±8mm | ±315mils |
| '曝光光谱 | 每个成像头配置4波长LED光源：365/380/395/405nm |
| '对位精度 | ±8μm | 0.3mil (片对板对位精度) ±12μm | 0.5mil (层间对位精度) |
| 'CCD摄像头 | 2个CCD摄像头 -外层（ 4个通孔靶标对位） -防焊对位精度（4个铜箔靶标对位) 3个CCD摄像头-内层（3个光学靶标对位） |
| '产能 | 14秒：30mJ/cm2曝光能量为基准，成像尺寸457 x 610mm (18’’x 24’’) ，使用6个成像头 |
| '制程应用 | 内层，外层，防焊/ PSR |
| '曝光面积 | 最大 228mm x 254mm | 最大 9’’x10’’ up to 24”x30” |
| '解析度 | Dry Film: 10µm/10µm | 0.4mil/0.4mil (线宽线距) Soldermask: Min Dam 25µm | 1mil 阻焊桥最小可达 |
| '光源 | ALDS-Power4+™ Data preprocessing in hidden time + High UV Power with 4 LEDs per Photo Head |

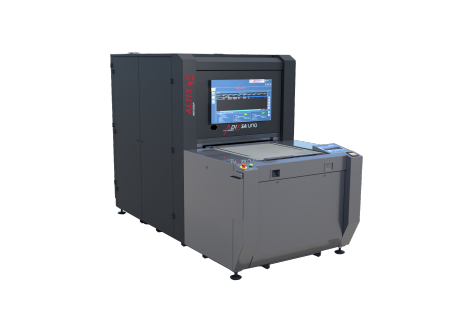

Adix PT / F
Adix SA 可以连接进出料+翻板系统，形成自动化生产模式。
Adix PT/F是一款基于其ALDS-Power4+™新技术的UV LED DMD直接成像解决方案，每个成像头包含4个不同的LED(4个不同波长)。
主要特点
| 全自动直接成像系统 | |
| 最大610 x 610mm /单面10秒 |
|
| 内联或独立解决方案/并排通过或翻转双面生产 | |
| 轻松应对多料号，少量多样生产模式 | |
| 适用于各类型干膜，防焊油墨/PSR |
| '板厚 | 0.04mm 到 6mm |
| '光源 | ALDS-Power4+™ |
| '边缘粗糙度 | ± 1,5µm |
| '景深 | ± 100µm |
| '自动对焦 | 每个成像头配动态AF传感器，行程±2mm |
| '对位精度 | ±12μm (层间对位精准度) ±8μm 片对板(孔或pad) |
| 'CCD摄像头 | 3个CCD摄像头：层间对位精度 2个CCD摄像头： 片对板对位精度 1个CCD摄像头-成像校准 |
| ' | 全自动直接成像系统 |
| ' | 最大610 x 610mm /单面10秒 |
| ' | 内联或独立解决方案/并排通过或翻转双面生产 |
| ' | 轻松应对多料号，少量多样生产模式 |
| ' | 适用于各类型干膜，防焊油墨/PSR |
Adix CS / F
Adix CS/F 是一款具有收放板装置的直接成像系统。该连线系统在放板位置有一个可用于连接放板/收板的L型架的端口.
主要特点
| 可达 610 x 610mm /10秒完成单面曝光 |
|
| A面 – B面模式：连续完成A面，利用暂存机构存放，再开始B面曝光作业 |
|
| 轻松应对多料号，少量多样生产模式 |
|
| 适用于各类型干膜和防焊油墨 |
| '板厚 | 0.05mm ~ 3.2mm ( 5mm可选) |
| '产能 | 单面25秒 |
| '传感器 | 集成智能双板侦测 集成（滑板）侦测 |
| '双面 | 翻转台面两个手臂交换面板 |
| ' | Adix SA can be incorporated with " Compact Automation " allowing full automatic operation |
| ' | 可达 610 x 610mm /10秒完成单面曝光 |
| ' | A面 – B面模式：连续完成A面，利用暂存机构存放，再开始B面曝光作业 r |
| ' | 轻松应对多料号，少量多样生产模式 |
| ' | 适用于各类型干膜和防焊油墨 |
Adix SA neo
产速更快更智能： Adix SA neo在ADIX SA的基础上生能提升了20%到30%
Adix SA neo是一款UV LED DMD 直接成像设备，适用于各种需要直接成像的应用。每个成像头配有4波长的高功率 neo UV LED 光源。
该设备适用于中/高批量，或少量多样的生产需求
主要特点
| 制程应用 | 内层，外层，防焊/ PSR |
| 曝光面积 | 从228 x 254mm到610 x 762mm |从 9” x 10”到24” x 30” |
| 解析度 | 干膜 : 30µm/30µm |1.2mil/1.2mil (线宽线距) 阻焊桥最小可达25µm | 1mi |
| 产能 | 在上一代Adix SA的基础上产能提升了20%到30% |
| 光源系统 | 每个成像头都有4波长的高功率neo UV-LED |
| '板厚 | 0.04mm 到 6mm | 0.0016” 到 0.236” |
| '解析度 | 低至30µm/1.2mil |
| '产能 | 大于6600面/每天 |
| '光源 | LED光源 每个成像头配有4波长的高功率 neo UV LED 光源 |
| '边缘粗糙度 | ±1,5µm | ±0.05mil |
| '景深 | 200µm | 8mils |
| '自动对焦 | ±8mm | ±315mils |
| '曝光光谱 | 每个成像头配置4波长LED光源：365/380/395/405nm |
| '对位精度 | ±8μm | 0.3mil (片对板对位精度) ±12μm | 0.5mil (层间对位精度) |
| 'CCD摄像头 | 2个CCD摄像头 -外层（ 4个通孔靶标对位） -防焊对位精度（4个铜箔靶标对位) 3个CCD摄像头-内层（3个光学靶标对位） |
| '制程应用 | 内层，外层&防焊 / PSR |
| '曝光面积 | 从228 x 254mm到610 x 762mm | 从9” x 10”到24” x 30” |
| '解析度 | 干膜 : 20µm/20µm |0.8mil/0.8mil (线宽线距) 阻焊桥最小可达 25µm | 1mi |
| '光源 | ALDS Power4+™极短的数据预处理时间 每个成像头配有4波长的高功率 neo UV LED 光源 |
