Afosa

Panel / Sheet Semi-Automatic

Afosa is designed as a single and/or double-sided semi-automatic UV exposure system, including LEDs, for fine line resolution on dry film and liquid soldermask.

Main characteristics
Process Inner Layers, Outer Layers & Soldermask / PSR
Exposure Area Up to 610mm x 762mm | Up to 24” x 30”
Resolution Dry Film : 15µm/15µm | 0.6mil/0.6mil (L&S)
Soldermask : min Dam 60µm | 2.4mil
Light Engine ColliLight™ 5kW & 8kW
LedLight™
Mach3®LedLight™
'Panel thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
ColliLight™ 5kW & 8kW
'Collimation ≤ 1.5°
'Dry Film Resist For all types of dry film
'Soldermask / PSR For all types of solder resist: green, white, blue, red, black…
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™ available for Afosa s
'Alignment ±15μm | 0.6mil AW/AW
±20μm | 0.8mil AW/Panel
'CCD Cameras 4 cameras (bottom side)
'Throughput Up to 2 panels/minute for I/L mode
'Batch Changeover ≤ 4 minutes - Artwork change and cleaning, job setting update
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist For all types of dry film
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™ available for Afosa s
'Alignment ±15μm | 0.6mil AW/AW
±20μm | 0.8mil AW/Panel
'CCD Cameras 4 cameras (bottom side)
'Throughput Up to 2 panels/minute for I/L mode
'Batch Changeover ≤ 4 minutes - Artwork change and cleaning, job setting update
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine 3 LED Light source
LedLight™ Mach3® - High power & triple wavelength led light source
'Collimation ≤ 1.6°
'Soldermask / PSR For all types & colors of ink: green, white, blue, red, black…
'Exposure Method Single side - Upper side exposure
'Exposure Contact Soft or hard contact vacuum - CMI™ available for Afosa s
'Alignment ±12μm | 0.5mil AW/Panel (copper pad fiducials)
'CCD Cameras 4 cameras (upper side) - All movable independently
'Throughput Up to 2 sides/minute for energy within 700mJ/cm2
'Batch Changeover ≤ 4 minutes - Artwork change and cleaning, job setting update
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Safety Safety light curtain
'Double Drawers Same height for both operating trays
'Basic Frame Stainless steel covers (hoods)
'Artworks Glass cooling system with regulation

More infos

Acura

Panel / Sheet Fully-Automatic

Acura is an automatic exposure unit operating in double side mode with different light sources, including LEDs, for fine line resolution on dry film and liquid soldermask.

Main characteristics
Process Inner Layers, Outer Layers & Soldermask / PSR
Exposure Area Up to 610mm x 762mm | Up to 24” x 30”
Resolution Dry Film : 15µm/15µm | 0.6mil/0.6mil (L&S)
Soldermask : min Dam 60µm | 2.4mil
Light Engine ColliLight™ 5kW & 8kW
LedLight™
OptiLight™
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist & Liquid ink For all types of dry film & liquid ink
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
ColliLight™ 5kW & 8kW
'Collimation ≤ 1.5°
'Dry Film Resist & Liquid ink For all types of dry film & liquid ink
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
OptiLight™
'Collimation <10°
'Liquid ink For all types of liquid ink
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist & Liquid ink For all types of dry film & liquid ink
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
ColliLight™ 5kW
'Collimation ≤ 1.5°
'Dry Film Resist For all types of dry film
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist For all types of dry film
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 4.5 panels/minute (dry film)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
ColliLight™ 8kW
'Collimation ≤ 1.5°
'Dry Film Resist For all types of dry film
'Soldermask / PSR For all types of solder resist: green, white, blue, red, black…
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±10μm | 0.4mil AW/Panel (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 8 cameras
'Throughput Up to 3 panels/minute depending on SM ink (mJ)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
OptiLight™
'Collimation <10°
'Dry Film Resist For all types of dry film
'Soldermask / PSR For all types of solder resist: green, white, blue, red, black…
'Exposure Method Double side
'Exposure Contact Soft or hard contact vacuum - CMI™
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±10μm | 0.4mil AW/Panel (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 8 cameras
'Throughput Up to 3 panels/minute depending on SM ink (mJ)
'Batch Changeover < 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…

More infos

Acura DSS

Panel / Sheet Fully-Automatic

Acura DSS is an automatic exposure unit operating in dual single side mode with an OptiLight™ or LedLight™ sources for fine line resolution on dry film or liquid soldermask.

Main characteristics
Process Outer Layers & Soldermask / PSR
Exposure Area Up to 711mm x 610mm | Up to 28” x 24”
Resolution Dry Film : 15µm/15µm | 0.6mil/0.6mil (L&S)
Soldermask : min Dam 60µm | 2.4mil
Light Engine LedLight™
OptiLight™
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist For all types of dry film
'Exposure Method Single side 1 + single side 2
'Exposure Contact Soft or hard contact vacuum
'Alignment ±8μm | 0.32mil AW/Panel (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras per exposure station
'Throughput Up to 4 panels/minute (dry film)
'Batch Changeover < 2 minutes per station - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
'Light Engine High pressure mercury lamp
OptiLight™
'Collimation <10°
'Dry Film Resist For all types of dry film
'Soldermask / PSR For all types of solder resist: green, white, blue, red, black…
'Exposure Method Single side 1 + single side 2
'Exposure Contact Soft or hard contact vacuum
'Alignment ±8μm | 0.32mil AW/Panel (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras per exposure station
'Throughput Up to 3 panels/minute depending on SM ink (mJ)
'Batch Changeover < 2 minutes per station - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…

More infos

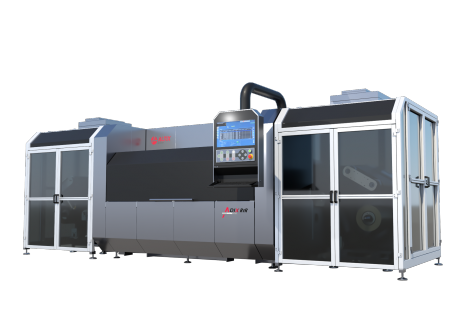

Arrow

Roll to Roll Fully-Automatic

Arrow is designed for 250mm web width, for single & double sided Roll to Roll UV exposure systems.
Fine line resolution, tight registration and high throughput capabilities are the main Arrow highlights.

Main characteristics
Process Inner Layers, Outer Layers & Sheet to Roll
Exposure Area Up to 250mm x 400mm | Up to 9.85” x 15.75”
Resolution Dry Film : 15µm/15µm | 0.6mil/0.6mil (L&S)
Light Engine ColliLight™ 5kW
LedLight™
'Web Thickness Down to 15µm | 0.6mil
'Light Engine High pressure mercury lamp
ColliLight™ 5kW
'Collimation ≤ 1.5°
'Dry Film Resist For all types of dry film
'Exposure Method Double side or single side
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±8μm | 0.32mil AW/Web (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 9 images/minute
'Batch Changeover ≤ 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Web Thickness Down to 15µm | 0.6mil
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist For all types of dry film
'Exposure Method Double side or single side
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±8μm | 0.32mil AW/Web (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras
'Throughput Up to 9 images/minute
'Batch Changeover ≤ 2 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…

More infos

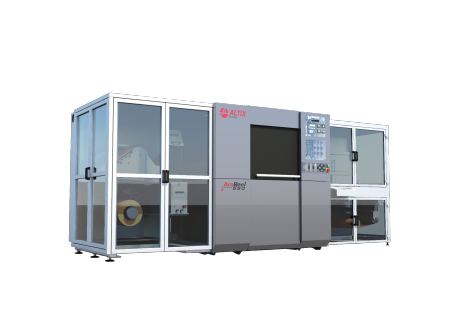

AcuReel

Roll to Roll Fully-Automatic

AcuReel is designed for 550mm web width, for single & double sided Roll to Roll UV Exposure systems.
Fine line resolution, tight registration and high throughput capabilities are the main AcuReel highlights.

Main characteristics
Process Inner Layers, Outer Layers & Coverlay / Soldermask / PSR
Exposure Area Up to 550mm x 650mm | Up to 21.6” x 25.6”
Resolution Dry Film : 15µm/15µm | 0.6mil/0.6mil (L&S)
Soldermask : min Dam 50µm | 2mil
Light Engine ColliLight™ 5kW & 8kW
LedLight™
'Web Thickness Down to 15µm | 0.6mil
'Light Engine High pressure mercury lamp
ColliLight™ 5kW & 8kW
'Collimation ≤ 1.5°
'Dry Film Resist For all types of dry film
'Coverlay / Soldermask / PSR For all types of solder resist: green, white, blue, red, black…
'Exposure Method Double side or single side
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±8μm | 0.32mil AW/Web (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras for I/L & O/L
4 cameras + 4 cameras for Coverlay / Soldermask / PSR
'Throughput Up to 8000 images/day
'Batch Changeover ≤ 5 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…
'Web Thickness Down to 15µm | 0.6mil
'Light Engine LED Light source
LedLight™
'Collimation ≤ 1.6°
'Dry Film Resist For all types of dry film
'Coverlay / Soldermask / PSR For all types of solder resist: green, white, blue, red, black…
'Exposure Method Double side or single side
'Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±8μm | 0.32mil AW/Web (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
'CCD Cameras 4 cameras for I/L & O/L
4 cameras + 4 cameras for Coverlay / Soldermask / PSR
'Throughput Up to 8000 images/day
'Batch Changeover ≤ 5 minutes - Artwork change and cleaning, job setting update
'Construction Stainless steel
'Software Altix Suite with 17” touch screen
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…

More infos

Adix SA

Panel / Sheet Semi-Automatic

Adix SA is an UV LED DMD Direct Imaging solution for all Direct Imaging applications based on its new ALDS-Power4™ technology with 4 LEDs per photo head.
The solution is dedicated to high mix low and medium volume production.

Main characteristics
Process Inner Layers, Outer Layers & Soldermask / PSR
Exposure Area From 228 x 254mm up to 610 x 762mm | From 9’’x10’’ up to 24”x30”
Resolution Dry Film : 25µm/25µm | 1mil/1mil (L&S)
Soldermask : min Dam 25µm | 1mil
Light Engine ALDS-Power4™
High UV Power with 4 LEDs per Photo Head
'Panel Thickness 0.04mm to 6mm | 0.0016” to 0.236”
'Light Engine LED Light source
ALDS-Power4™
'Edge Roughness ±1,5µm | ±0.05mil
'Depth of Focus ±100µm | ±4mils
'Autofocus ±8mm | ±315mils
'Exposure Spectrum 4 LEDs wavelengths per Photo Head: 365/380/395/405nm
'Imaging Resist Materials Conventional & DI/LDI Specific Dry Film, Ink & Solder Resists
'Exposure Method Real Time Scaling & Partitioning with all kinds of fiducials
'Alignment ±8μm | 0.3mil (Image to Panel Registration)
±12μm | 0.5mil (Side to Side Registration)
'CCD Cameras 2 Cameras
- for Outer Layers (Alignment on 4 Holes)
- for Soldermask Registration (Alignment on 4 Copper Targets)
3 Cameras
- for Inner Layers (Alignment on 3 Fiducials)
'Throughput 14s with 30mJ/cm2 resist for 457 x 610mm (18’’x 24’’) image size and with 6 Heads
'Construction Stainless steel
'Software Altix Suite with 22” touch screen
'Data Input Extended Gerber, ODB++ (others upon request)
'Air Cleanliness Hepa filter class 100
'Languages English, Simplified & Traditional Chinese, Korean, German, French…

More infos

Main characteristics
Integrated Automation for Fully-Automatic Direct Imaging Process
Pass Through side by side or Flip double side Production
High mix & medium volume
Dedicated to all resists : Dry Film & Soldermask / PSR

More infos

Adix CS / F (with external automation)

Panel / Sheet Fully-Automatic

Main characteristics
System designed to automatically load and unload panels into an Adix Direct Imaging System for either horizontal or angular cassettes
Compact automation upgradable on site

More infos

Adix with External Automation - Customized Solutions

Panel / Sheet Fully-Automatic

Main characteristics
Adix Units can be incorporated with various Customized "Smart Automation" solutions in order to allow full automatic operation
Customized Solutions fit all specific Customer needs and are adequate for small lot sizes, high mix and high volume production

More infos

Altix worldwide !

Discover all our offices
