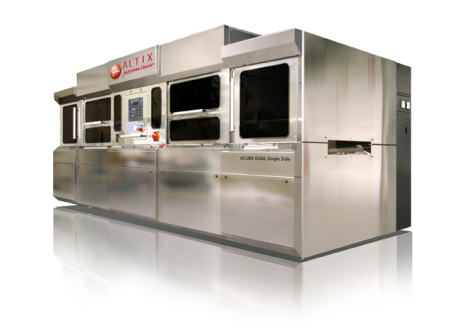

Acura DSS

Panel / Sheet Fully-Automatic

Acura DSS is an automatic exposure unit operating in dual single side mode with an OptiLight™ or LedLight™ sources for fine line resolution on dry film or liquid soldermask.

The machine is dedicated to PCB and FPC applications for Outer Layers and Soldermask / PSR processes and was designed to reach the best cost performance ratio.

Benefits & exclusive features

Fully-Automatic double single sided exposer dedicated to Outer Layers, Soldermask / PSR

  • Innovative light sources LedLight™, OptiLight™
  • Large format up to 711mm x 610mm | up to 28" x 24"
  • High resolution
  • High productivity up to 4 panels/minute
  • Extractible glass for easy cleaning
  • Fast & reliable flip station
  • Non contact pre-alignment station

Documentation:
Acura Double Single Side LedLight™ I/L-O/L Acura Double Single Side OptiLight™ SM/PSR


Share this product: Mail


Process Outer Layers & Soldermask / PSR
Exposure Area Up to 711mm x 610mm | Up to 28” x 24”
Resolution Dry Film : 15µm/15µm | 0.6mil/0.6mil (L&S)
Soldermask : min Dam 60µm | 2.4mil
Light Engine LedLight™
OptiLight™

Models

Documentation

Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
Light Engine LED Light source
LedLight™
Collimation ≤ 1.6°
Dry Film Resist For all types of dry film
Exposure Method Single side 1 + single side 2
Exposure Contact Soft or hard contact vacuum
Alignment ±8μm | 0.32mil AW/Panel (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
CCD Cameras 4 cameras per exposure station
Throughput Up to 4 panels/minute (dry film)
Batch Changeover < 2 minutes per station - Artwork change and cleaning, job setting update
Construction Stainless steel
Software Altix Suite with 17” touch screen
Air Cleanliness Hepa filter class 100
Languages English, Simplified & Traditional Chinese, Korean, German, French…

Documentation

Panel Thickness 0.05mm to 6mm | 0.002” to 0.236”
Light Engine High pressure mercury lamp
OptiLight™
Collimation <10°
Dry Film Resist For all types of dry film
Soldermask / PSR For all types of solder resist: green, white, blue, red, black…
Exposure Method Single side 1 + single side 2
Exposure Contact Soft or hard contact vacuum
Alignment ±8μm | 0.32mil AW/Panel (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
CCD Cameras 4 cameras per exposure station
Throughput Up to 3 panels/minute depending on SM ink (mJ)
Batch Changeover < 2 minutes per station - Artwork change and cleaning, job setting update
Construction Stainless steel
Software Altix Suite with 17” touch screen
Air Cleanliness Hepa filter class 100
Languages English, Simplified & Traditional Chinese, Korean, German, French…
