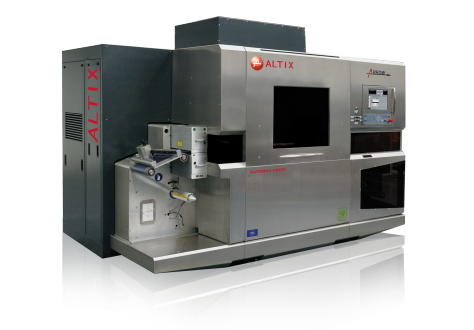

Arrow

Roll to Roll Fully-Automatic

Arrow is designed for 250mm web width, for single & double sided Roll to Roll UV exposure systems.
Fine line resolution, tight registration and high throughput capabilities are the main Arrow highlights.

All types of FPC material, Metal Etching, Thin Film Photovoltaic, Touch Panel… can be handled for Inner Layers, Outer Layers and Sheet to Roll processes.

产品优点

Roll to Roll simultaneous double sided exposer dedicated to Inner Layers, Outer Layers, Coverlay / Soldermask / PSR

  • Innovative light sources LedLight™, ColliLight™
  • Image size up to 250mm x 400mm | up to 9.85” x 15.75”
  • Very accurate registration ; AW/AW : ±5µm | 0.2mil
  • High productivity up to 9 images/minute
  • Integrated unwinding & winding devices with cleanliness management
  • Unique web clamping and vacuum system
  • Web pulling station
  • Sheet to Roll capability
  • Double side and single side mode
  • Compatibility with glass artwork

请求报价

文件:

产品: Mail

Process Inner Layers, Outer Layers & Sheet to Roll
Exposure Area Up to 250mm x 400mm | Up to 9.85” x 15.75”
Resolution Dry Film : 15µm/15µm | 0.6mil/0.6mil (L&S)
Light Engine ColliLight™ 5kW
LedLight™

型号

Web Thickness Down to 15µm | 0.6mil
Light Engine High pressure mercury lamp
ColliLight™ 5kW
Collimation ≤ 1.5°
Dry Film Resist For all types of dry film
Exposure Method Double side or single side
Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±8μm | 0.32mil AW/Web (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
CCD Cameras 4 cameras
Throughput Up to 9 images/minute
Batch Changeover ≤ 2 minutes - Artwork change and cleaning, job setting update
Construction Stainless steel
Software Altix Suite with 17” touch screen
Air Cleanliness Hepa filter class 100
Languages English, Simplified & Traditional Chinese, Korean, German, French…
Web Thickness Down to 15µm | 0.6mil
Light Engine LED Light source
LedLight™
Collimation ≤ 1.6°
Dry Film Resist For all types of dry film
Exposure Method Double side or single side
Alignment ±5μm | 0.2mil AW/AW (after vacuum)
±8μm | 0.32mil AW/Web (after vacuum)
±3μm | 0.12mil Repeatability (after vacuum)
CCD Cameras 4 cameras
Throughput Up to 9 images/minute
Batch Changeover ≤ 2 minutes - Artwork change and cleaning, job setting update
Construction Stainless steel
Software Altix Suite with 17” touch screen
Air Cleanliness Hepa filter class 100
Languages English, Simplified & Traditional Chinese, Korean, German, French…
